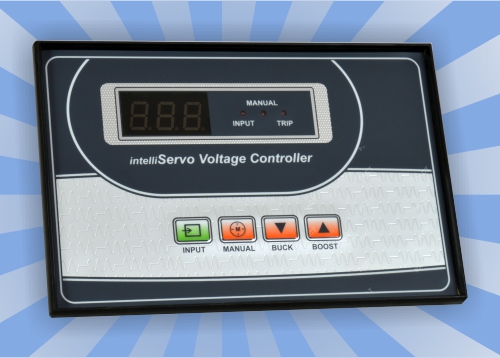

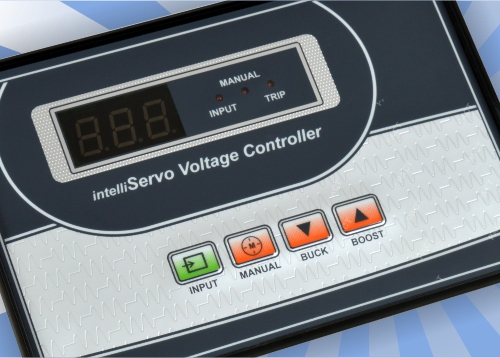

intelliServo Voltage Controller

Intelligent controller for Stabilizers - Reduce production overheads

With thorough proficiency and understanding in this sphere, we are engaged in rendering a superior-class intelliServo Voltage Controller. These servo control cards are specially built for the manufacturers of servo voltage stabilizer. The design is conceived so as to reduce production overheads like testing and wiring of the servo stabilizers. It will surely reduce the labor costs and increases production rate.

It has an innovative intelligent software algorithms residing on latest technology microcontroller which is entirely designed, developed and manufactured in INDIA.

Models

It is a fully automatic micro-controller based intelligent controller / servo control cards with enhanced service life and sturdy construction. It will help the manufacturers of Servo Voltage Stabilizer in reducing both time and cost of production.

  • Advanced PIC Microcontroller based, indigenous design
  • Panel mounted ergonomic design with easy to operate keys
  • Full integrated drive for AC synchronous servo motor
  • Bright 3 digit, 7 Segment LED display
  • Display Parameters: Output Voltage, Input Voltage, Output Current , Frequency^, Temperature~
  • Auto trip for Under voltage, Over voltage and Over load with time delay ^
  • Tripping Modes: Contactor/Relay/Shunt
  • Manual mode for field testing
  • Oil Temperature Sensor ~

User programmable parameters: Under Voltage, Over Voltage, Over Load ^, Time delay, Output voltage, Sensitivity, CT Ratio ^, Tripping Type, Variable display, Start-up time delay.

Available in: ^ VAF Models, ~ VAFT Models

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by manufacturer for any consequences arising out of the use of this material.
