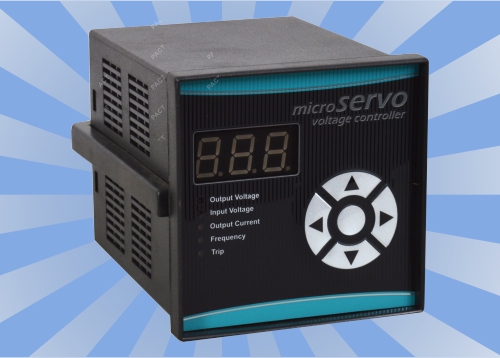

microServo Voltage Controller

Smart controller for Servo Stabilizers - Reduce wiring hassles

With précised understanding of client variegated demands, we are immersed in presenting a top class microServo Voltage Controller. It is entirely designed, developed and manufactured in INDIA. The firmware of servo control card is embedded with innovative software algorithms residing on latest technology microcontroller chips. The design is conceived so as to reduce production overheads like wiring and testing when it is put on the servo voltage stabilizer.

Integrated voltage stabilizer controller greatly reduces labor costs and increases production rate of the stabilizers.

Models

It is a fully automatic micro-controller based controller / servo control cards for manufacturers of Servo Voltage Stabilizer. It’s a smart meter with hassle free operation with compact design and excellent performance.

  • Advanced PIC Microcontroller based, indigenous design
  • Panel mounted ergonomic design with easy to operate keys
  • Full integrated drive for AC synchronous servo motor
  • Bright 3 digit, 7 Segment LED display
  • Display Parameters: Output Voltage, Input Voltage, Output Current, Frequency, Temperature ^
  • Auto trip for Under voltage, Over voltage and Over load with time delay
  • Tripping Modes: Contactor/Relay/Shunt
  • Audio/Visual alarm
  • Manual mode for field testing
  • Oil Temperature Sensor ^
  • Supports 110 Volts ^
  • Fully programmable (on-site/off-site) with 2-level password protection

User programmable parameters: Under Voltage, Over Voltage, Over Load, Time delay, Output voltage, Sensitivity, CT Ratio, Tripping Type, Variable display, Start-up time delay.

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by manufacturer for any consequences arising out of the use of this material.
